【Features】
  • Ideal solution for building smart factories with state of the art technology

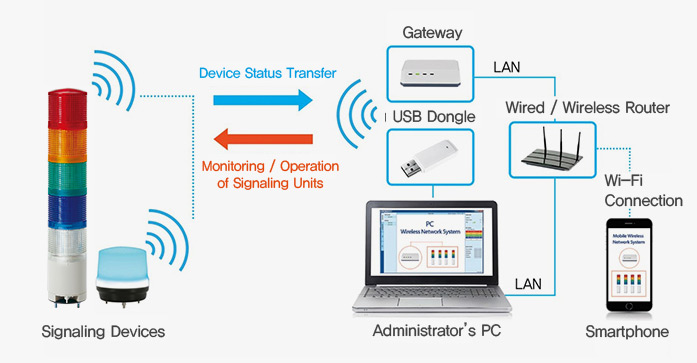

  • Wireless monitoring and control of signal tower light via PC or smartphone
  • WIZ series can integrate mismatch among old machineries, latest equipment and various brands

【Main characteristics】
  • Possible to control the product via external communication and PC application software
  • The product transfers visual and audible warning signals as well as data being monitored remotely by means of wireless communication.
  • Productivity and failure rate management for each machine
  • Cost effective solution for an advanced manufacturing network system
  • Mesh topology uses 2.4GHz local wireless telecommunication to enable stable communication even under the harsh environmental conditions.
  • The multi-hop feature allows for long distance communication up-to 10 HOP (100 meter between the units).
  • Production equipment relocation would be convenient because the wireless network system does not require a telecommunication cable.
  • 5 built-in buzzer tones are available.
  • Volume : Buzzer – Max. 85dB at 1m
  • Protection rating : IP54/IP65
  • Certificates : KC DC24V, CE RED, FCC
  • Compliant with RoHS directive

【Operational environment】
  • OS Support: Windows 10
  • Library Support: C#(64bit only)
  • Wireless communication protocol : Zigbee(IEEE802.15.4)
  • 2.4GHz radio communication available


Product Specifications

Model number Layer Voltage Current Certificates Weight Color
QTG60ML-WIZ
Steady
QTG60ML-WIZ-BZ
Steady /w built-in buzzer
QTG60MLF-WIZ
Steady/Flashing
QTG60MLF-WIZ-BZ
Steady/Flashing
/w built-in buzzer

QTGA60ML-WIZ
Steady
QTGA60ML-WIZ-BZ
Steady /w built-in buzzer
QTGA60MLF-WIZ
Steady/Flashing
QTGA60MLF-WIZ-BZ
Steady/Flashing
/w built-in buzzer
1 DC12V
DC24V
AC110V~220V
0.090A
0.050A
Max. 0.050A




0.26kg
0.26kg
0.36kg
R-Red
2 DC12V
DC24V
AC110V~220V
0.180A
0.100A
Max. 0.072A
0.34kg
0.34kg
0.44kg
R-Red
G-Green
3 DC12V
DC24V
AC110V~220V
0.270A
0.150A
Max. 0.094A
0.43kg
0.43kg
0.53kg
R-Red
A-Amber
G-Green
4 DC12V
DC24V
AC110V~220V
0.360A
0.200A
Max. 0.116A
0.51kg
0.51kg
0.61kg
R-Red
A-Amber
G-Green
B-Blue
5 DC12V
DC24V
AC110V~220V
0.450A
0.250A
Max. 0.138A
0.59kg
0.59kg
0.69kg
R-Red
A-Amber
G-Green
B-Blue
W-White
1
