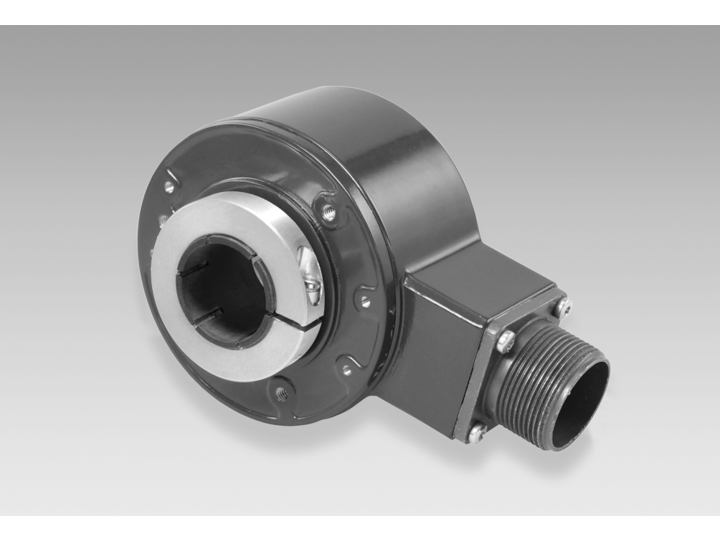

Incremental encodersInsulated through hollow shaft ø0.375...1 inch
- Robust industrial encoder up to IP 67 protection
- Highly versatile fully programmable encoder

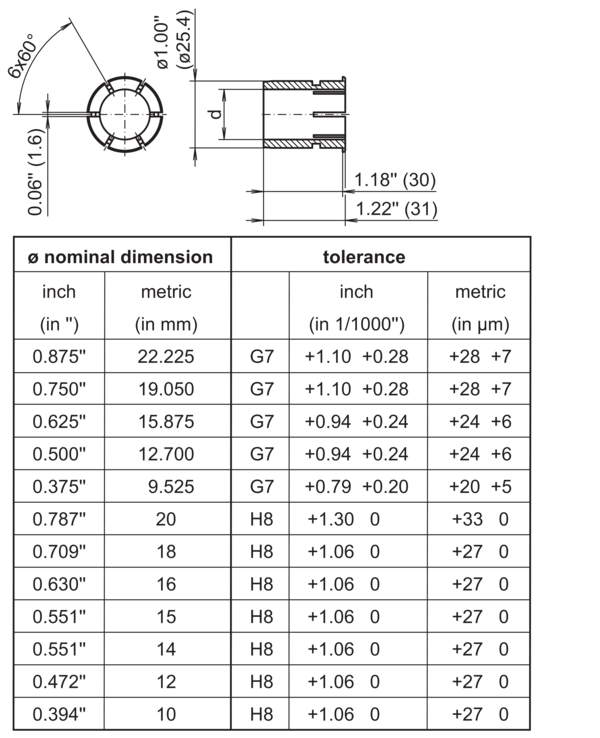

- Interchangeable bore size(s) using metal inserts
- Insulating sleeve to prevent high shaft currents from damaging bearings
- Programmable resolution from 1...8192 ppr
- User programmable index pulse width and location
- Programmable from PC or standalone Baumer Programming Tools
- Wide range voltage supply 4.75...30 VDC
- Shock resistant up to 200 g's
Technical data - electrical ratings
- Voltage supply
- 4.75...30 VDC
- Reverse polarity protection
- Yes
- Consumption w/o load
- ≤50 mA (24 VDC)
- ≤180 mA (5 VDC) + output load, max. 250 mA
- Pulses per revolution
- 1 … 8192
- Sensing method
- Optical
- Output frequency
- ≤300 kHz (TTL)
- ≤160 kHz (HTL)
- Output signals
- A, B, Z
- A, B, Z + complement, ½ cycle index gated with negative B channel
- Output stages
- Linedriver (TTL, 7272) Vout = 5 V, short-circuit proof
- Push-pull (HTL, 7272) Vout = Vin, short-circuit proof
- Programmable parameters
- Output resolution in increments of one (can be different for A and B)
- Output level TTL/HTL
- Zero pulse width and position
- Rotational direction CW/CCW
- Interference immunity
- DIN EN 61000-6-2
- Emitted interference
- DIN EN 61000-6-3
- Approval
- UL approval / file no. E240061
- RoHS compliant EU guideline 2011/65/EC
- CE
Technical data - mechanical design
- Size (flange)
- ø3.15" (ø80 mm)
- Shaft type
- ø0.375...1" (ø9.525...25.4 mm) (through hollow shaft isolated)
- Bore runout
- 0.0016" (0.04 mm) TIR max.
- Admitted misalignment
- 0.004" (0.1016 mm) radial TIR (end of shaft)
- 0.01" (0.254 mm) axial
- Protection DIN EN 60529
- IP 54
- IP 65
- IP 67
- Operating speed
- ≤5000 rpm (see temperature diagram)
- Bearing
- 52100 SAE high carbon steel (ABEC 5)
- Starting torque
- ≤3 in-oz (77 °F, IP 65)
- ≤0,02 Nm (+25 °C, IP 65)
- Rotor moment of inertia
- 2,3 oz-in² (420 gcm²)
- Service life
- Bearing: typ. 13 billion rev. (89000 h/2500 rpm)
- Material
- Housing: aluminium, powder-coated
- Shaft: stainless steel
- Operating temperature
- -40...+212 °F (-40...+100 °C), (fixed cable): see temperature diagram
- Relative humidity
- 98 % non-condensing
- Resistance
- DIN EN 60068-2-6 Vibration 20 g, 60-2000 Hz
- DIN EN 60068-2-27 Shock 200 g, 6 ms
- Connection
- MIL-connector, 7-pin
- MIL-connector, 10-pin
- Cable (AWG26 wire)
- Weight approx.
- 23 oz.
- 660 g
Baumer_BTDE-Certificate-of-Compliance_CA_1204.pdf
Baumer_Encoder-Software-V33-16-07-05_SW_EN_1607.zip
Baumer_Encoders_DE-EN-FR_CoC_81189267.pdf
Baumer_HS35P_DS_EN.pdf

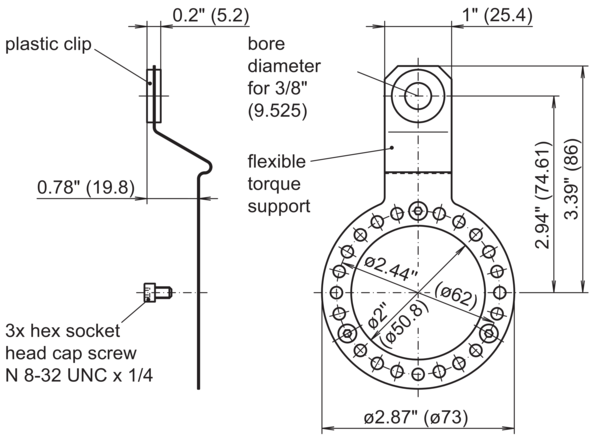

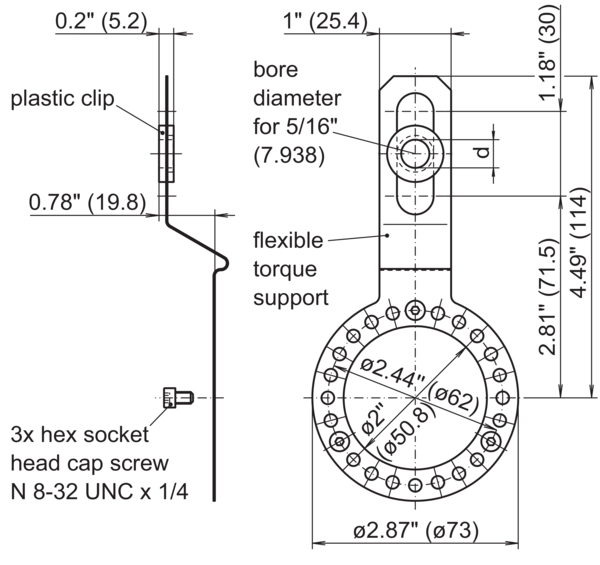

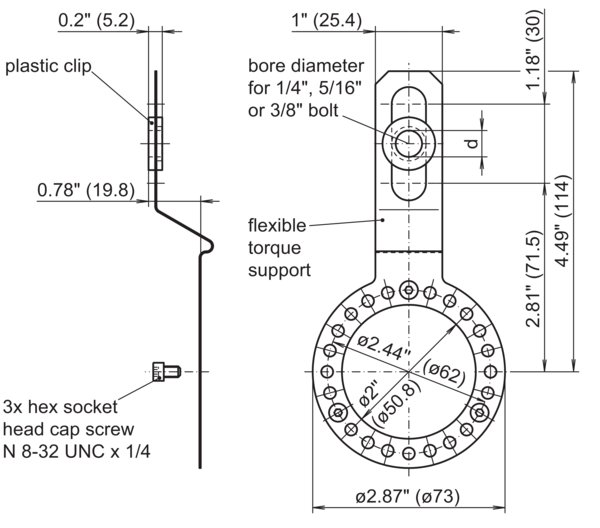

Baumer_tetherarmT1-3Dpdf_CAD_11076339.pdf

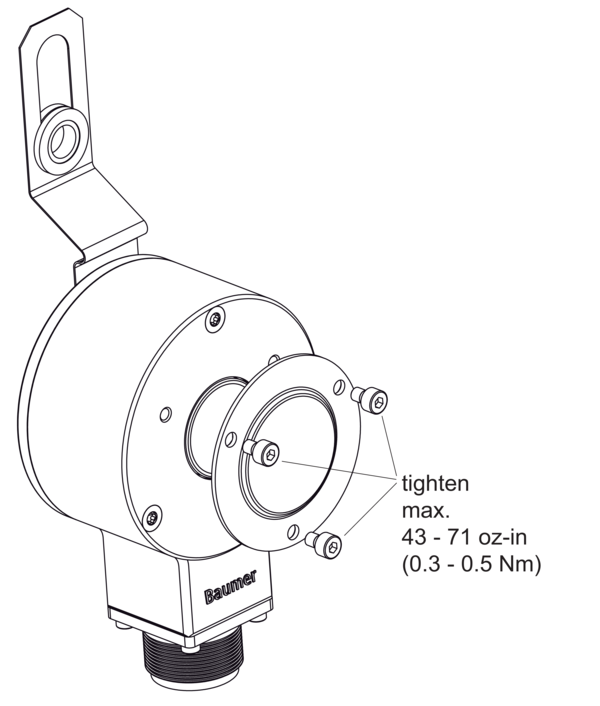

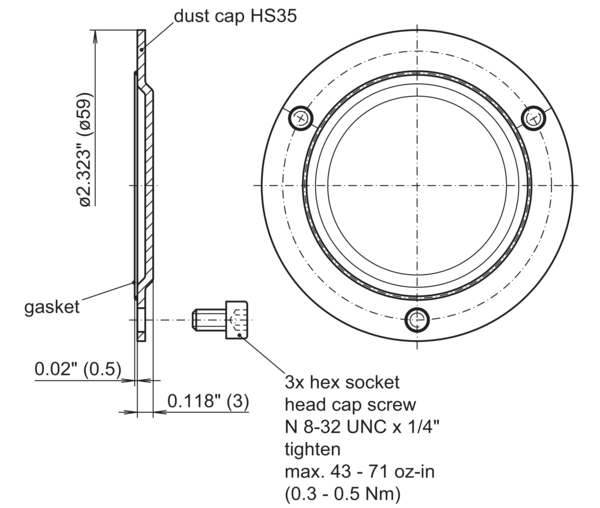

Installation_instruction_protective_cover_HS35.pdf
